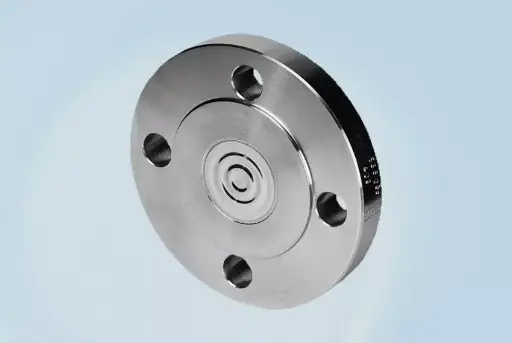

Flanged diaphragm seal
Flanged diaphragm seals for pressure measurements according to the sketch opposite are used for viscous, crystallizing and solid-bearing media. The corresponding pressure gauge is screwed in tightly on the receiving side and the entire system is filled with transmission liquid after evacuation.
